Gavita UCL 150W Under Canopy LED

Gavita UCL 150W Under Canopy LED

SKU: HGC907092
$149.99
$169.00
SALE
Available to Order (1962 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm same-day pickup.

Quick answer

Gavita UCL 150W Under Canopy LED should be matched to canopy footprint, mounting height, dimming needs, crop stage, heat load, and controller compatibility.

Best fitGrow spaces where the fixture footprint, power draw, and hanging height fit the actual canopy.
Check before orderingConfirm voltage, plug type, controller compatibility, dimensions, hanging hardware, and room heat management.
Grower tipStart with conservative intensity, then raise output as plants respond. Airflow and distance matter as much as wattage.

Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.

Description

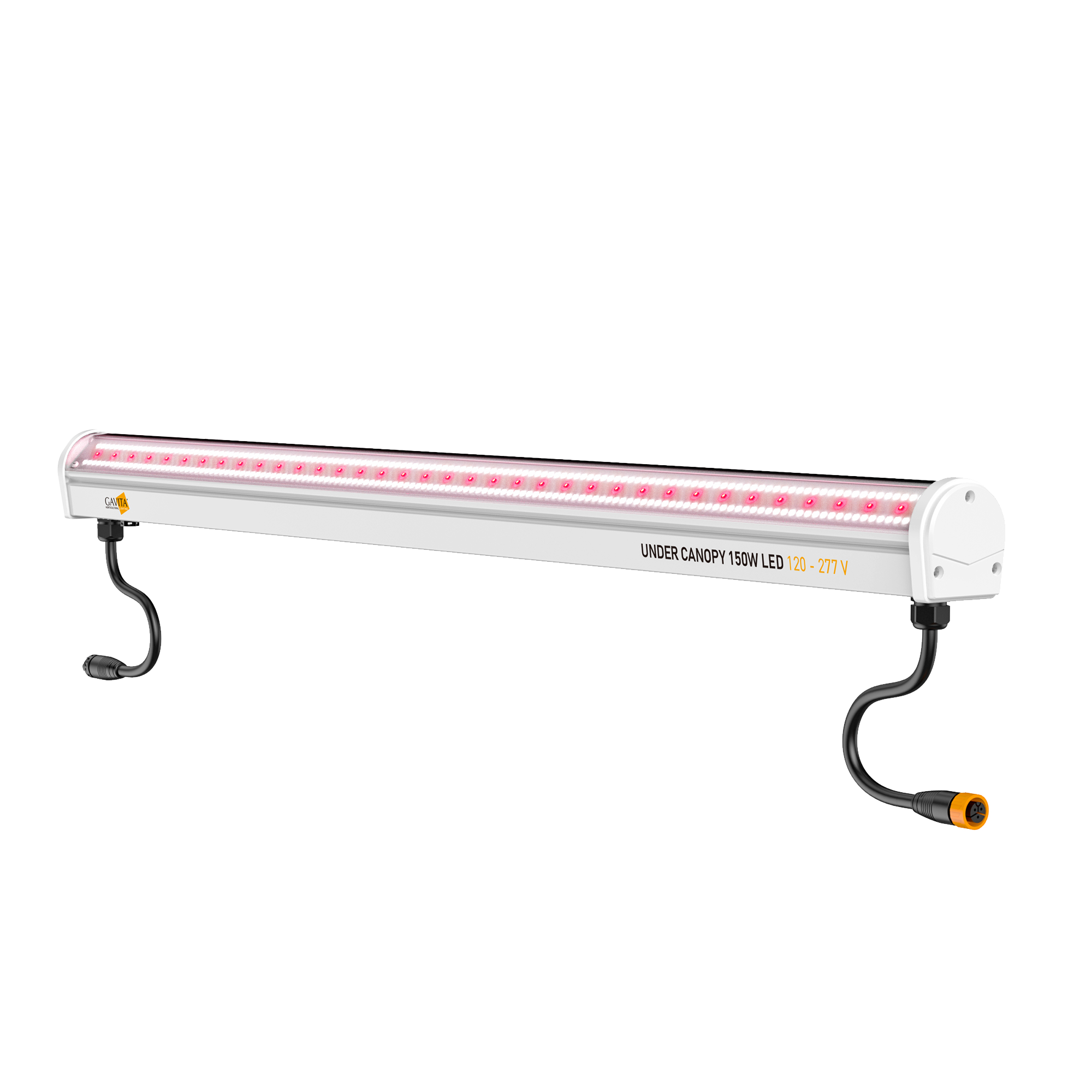

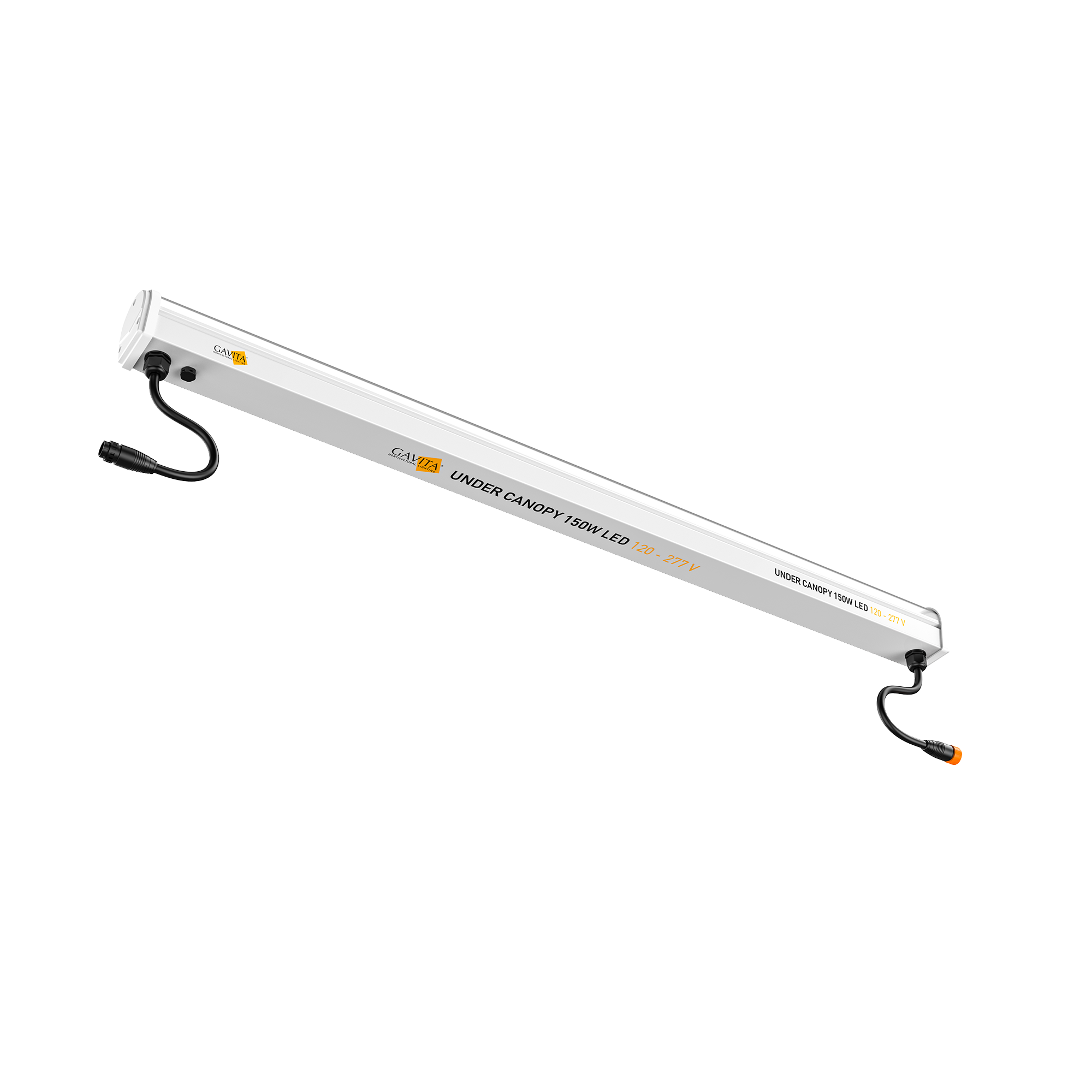

The Gavita Under Canopy LED delivers 150W of high-output, energy-efficient supplemental lighting designed to penetrate below the main canopy and boost lower bud sites.

With a total PPF of 450 µmol/s at 3.0 µmol/J efficiency, it maximizes yield and energy savings in commercial facilities.

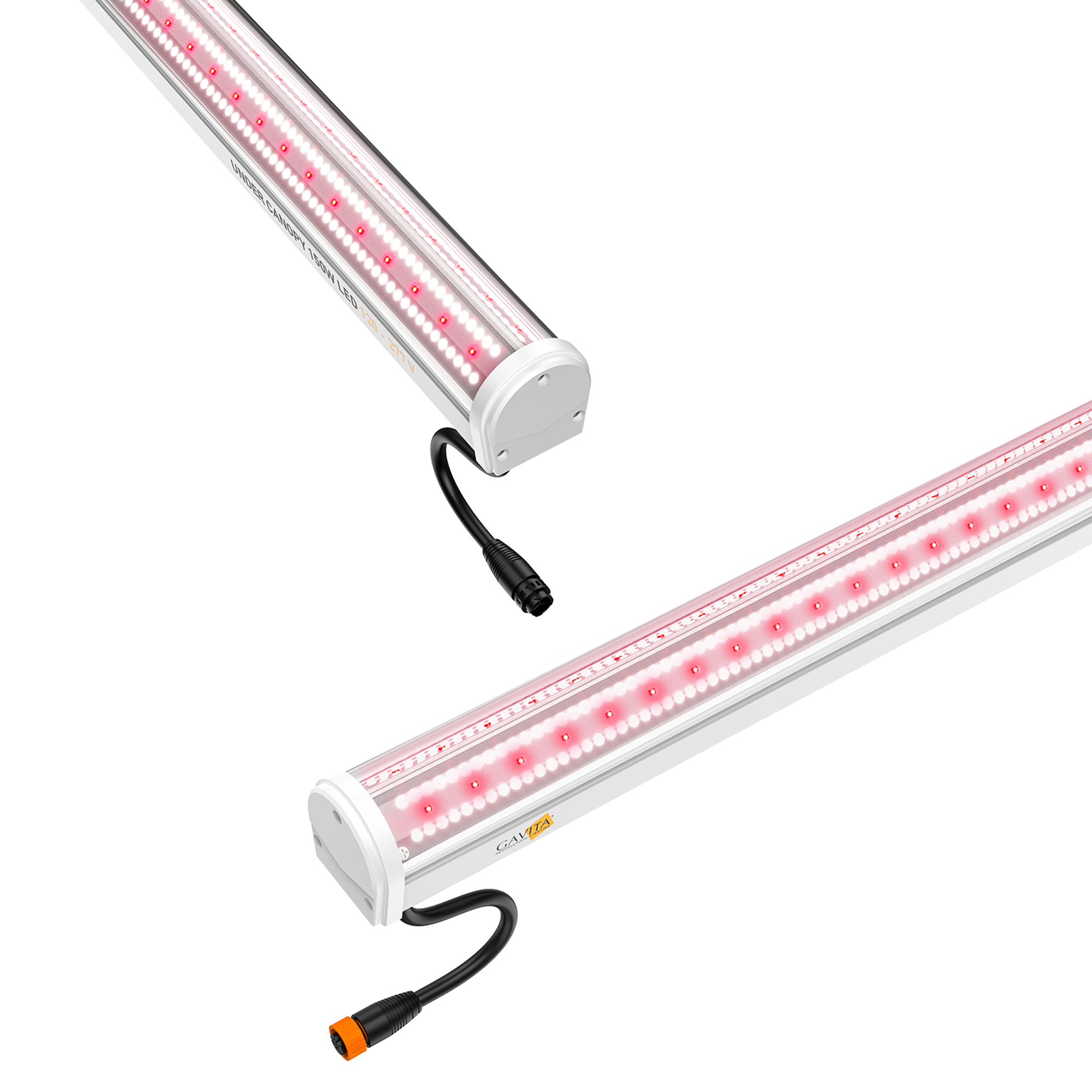

The innovative dual-sided design achieves a broad 155° light distribution, ensuring even coverage across and beneath the canopy.

Built with robust PC material offering over 92% optical transmission, it's IP66 rated for dust, oil, and water resistance in harsh grow environments.

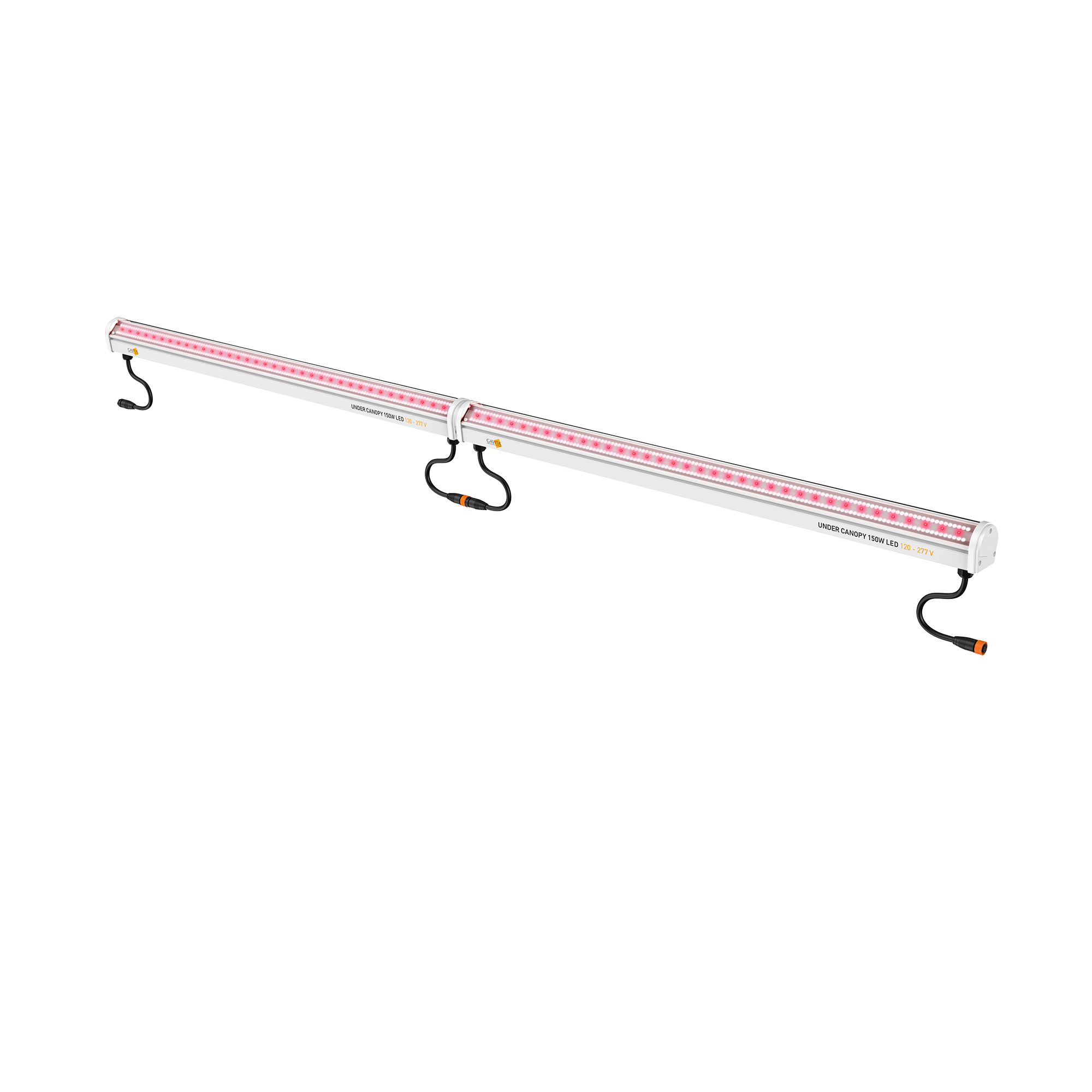

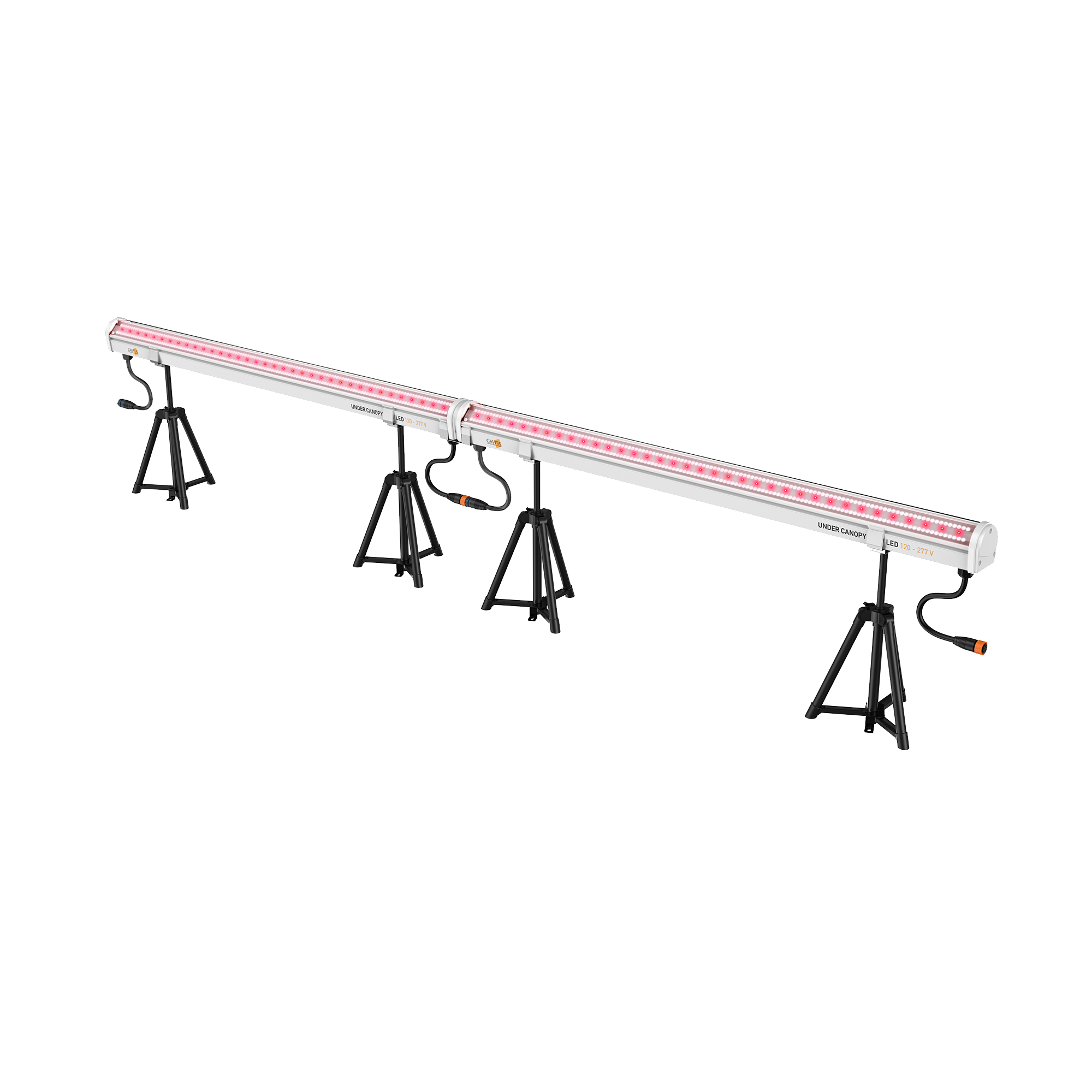

Fully dimmable from 10% to 100%, with daisy-chain capability up to 17 units at 277V for easy scaling.

The 120-277V universal voltage range suits any facility, and the compact bar design fits tight spaces between plant rows.

  • 450 µmol/s PPF at 3.0 µmol/J efficiency
  • Dual-sided 155° distribution for under-canopy penetration
  • IP66 rated — dust, oil, and water resistant
  • Fully dimmable 10-100% for precise control
  • Daisy-chain up to 17 units at 277V
  • Universal 120-277V voltage range

Specifications

SKUHGC907092
BrandGavita
UPC849969001792
Weight11.02 lbs
Dimensions3.19 x 2.99 x 45.12 in
Input Wattage150W
PPF Output450 µmol/s
Efficiency (PPE)3.0 µmol/J
SpectrumFull Spectrum
Input Voltage120-277V
Current @ 120V1.31A
Current @ 208V0.74A
Current @ 240V0.64A
Current @ 277V0.57A
Frequency50/60 Hz
Power Factor> 0.90
Light Distribution155°
IP RatingIP66 (Wet Location)
Dimming Range10-100%
Dimming Communications0-10V IEC60929 Annex E, RJ12
Max Ambient Temp104°F (40°C)
Max Daisy Chain17 units @ 277V
CertificationsETLus, UL 1598, ANSI/CAN/UL 8800
Warranty5-Year Limited
Heat Load512 BTU/hr
