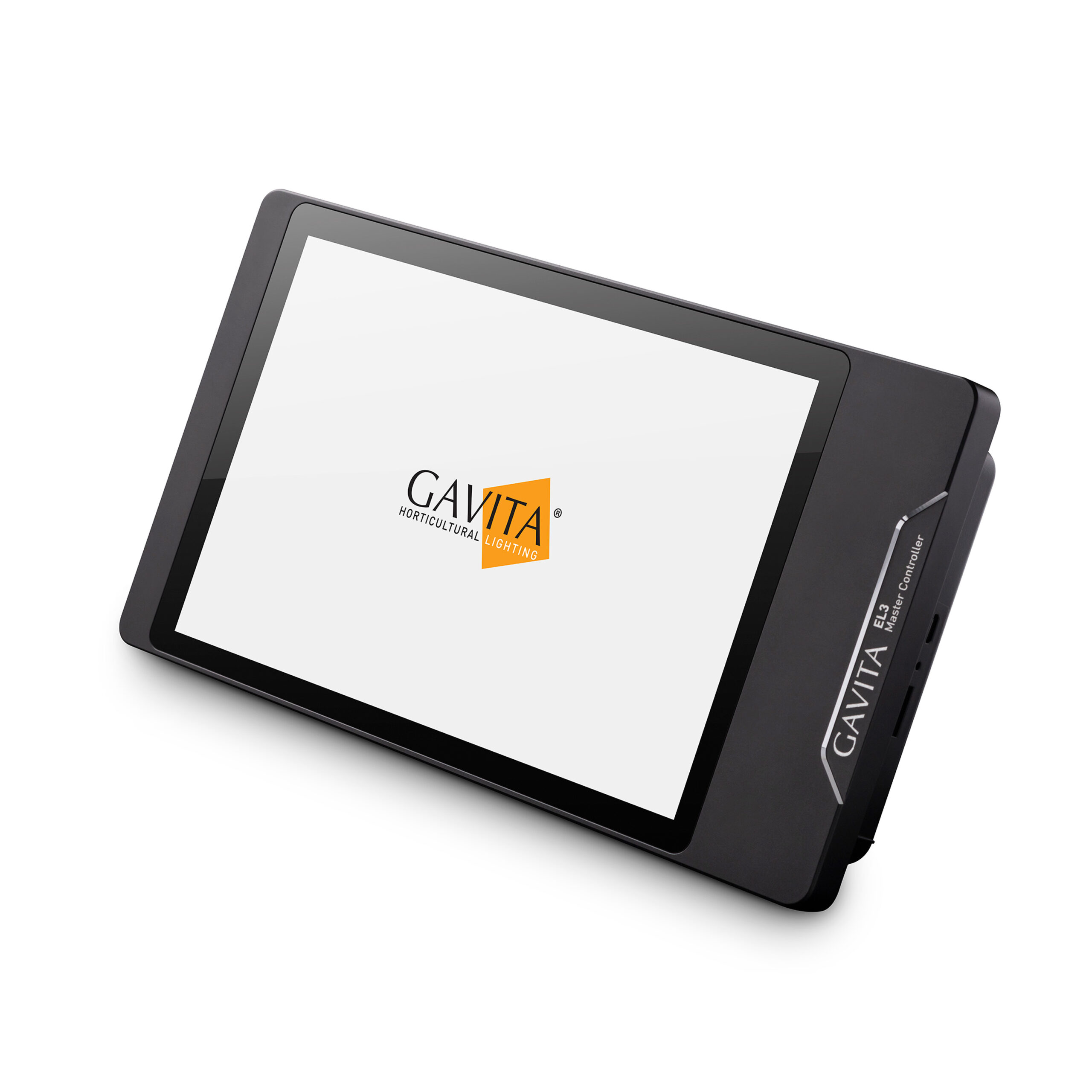

Gavita Master Controller EL3
Gavita Master Controller EL3 - Image 1Gavita Master Controller EL3 - Image 2Gavita Master Controller EL3 - Image 3Gavita Master Controller EL3 - Image 4

Gavita Master Controller EL3

SKU: HGC906174
$669.99
$999.00
SALE
Available to Order (21 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm same-day pickup.
Questions? Call 419-725-2450

Quick answer

Gavita Master Controller EL3 should be matched to canopy footprint, mounting height, dimming needs, crop stage, heat load, and controller compatibility.

Best fitGrow spaces where the fixture footprint, power draw, and hanging height fit the actual canopy.
Check before orderingConfirm voltage, plug type, controller compatibility, dimensions, hanging hardware, and room heat management.
Grower tipStart with conservative intensity, then raise output as plants respond. Airflow and distance matter as much as wattage.

Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.

Description

The Gavita Master Controller EL3 is the most advanced lighting controller for commercial horticulture.

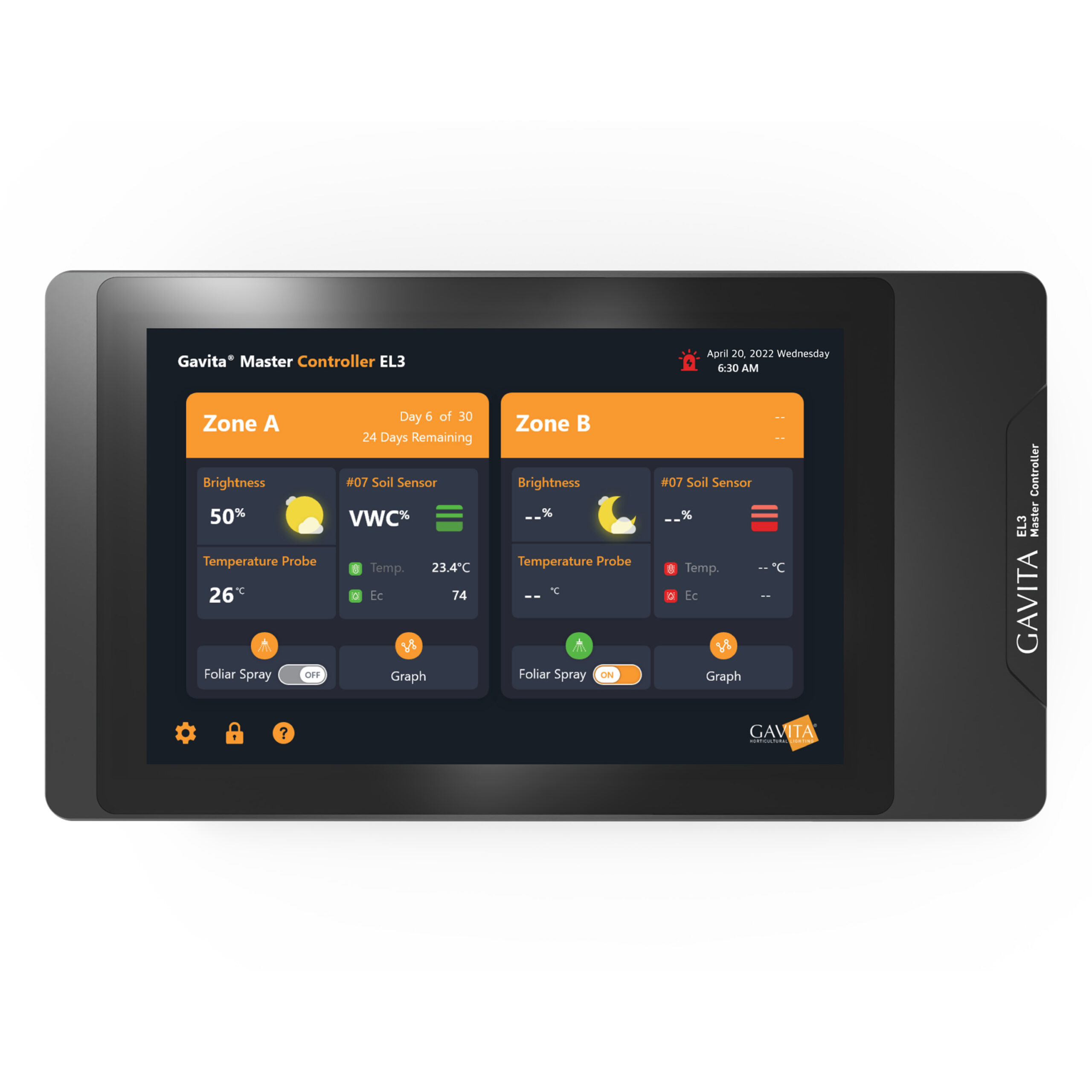

Featuring an 8-inch touchscreen interface, it controls up to 512 LED fixtures per zone with support for up to 16 Titan Controls environmental sensors.

The EL3 provides programmable sunrise/sunset dimming, high-temperature dimming, high-temperature auto-shutdown, and a spray mode that dims lights to protect crops during foliar applications.

Real-time power monitoring tracks energy consumption across all connected fixtures, while comprehensive data logging saves setting history for trend and performance analysis.

Software updates via USB keep the controller current.

Compatible with Gavita's full range of LED fixtures and most building automation systems through 0-10V and digital control outputs.

Maximum cable distance of 800 meters enables facility-wide deployment.

  • 8-inch touchscreen with intuitive interface
  • Controls up to 512 fixtures across multiple zones
  • Supports 16 Titan Controls environmental sensors
  • Programmable sunrise/sunset dimming curves
  • High-temperature auto-dimming & auto-shutdown
  • Spray mode dims lights during foliar applications

Specifications

SKUHGC906174
BrandGavita
UPC849969000436
Weight5.51 lbs
Dimensions4.9 x 7.3 x 12.7 in
Display8-inch touchscreen
Input Voltage100-240V
Current1.5A
Frequency50/60 Hz
Control Output0-10V and digital
Third-Party Input0-11.5V
Max Fixtures Per Zone256
Total Fixture Capacity512
Max Sensors16 (Titan Controls)
Max Cable Distance800m
IP RatingIP20
Max Ambient Temp122°F (50°C)
Max Humidity≤ 90%
CertificationscETLus, UL 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-201
Warranty3-Year Limited
