TrolMaster (TS-3) Reheat Control Station
SKU: TRCTS3
$199.00
Out of Stock
Quick answer
TrolMaster (TS-3) Reheat Control Station is best evaluated by room size, plant count, watering volume, temperature, target humidity, and drain setup.
Best fitRooms or tents where humidity control must match the actual water load, not only the square footage.
Check before orderingConfirm voltage, drain setup, hanging or floor placement, controller needs, dimensions, and service clearance.
Grower tipCall Toledo Indoor Garden before buying if you are unsure about sizing. We can help avoid undersizing or overbuying.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

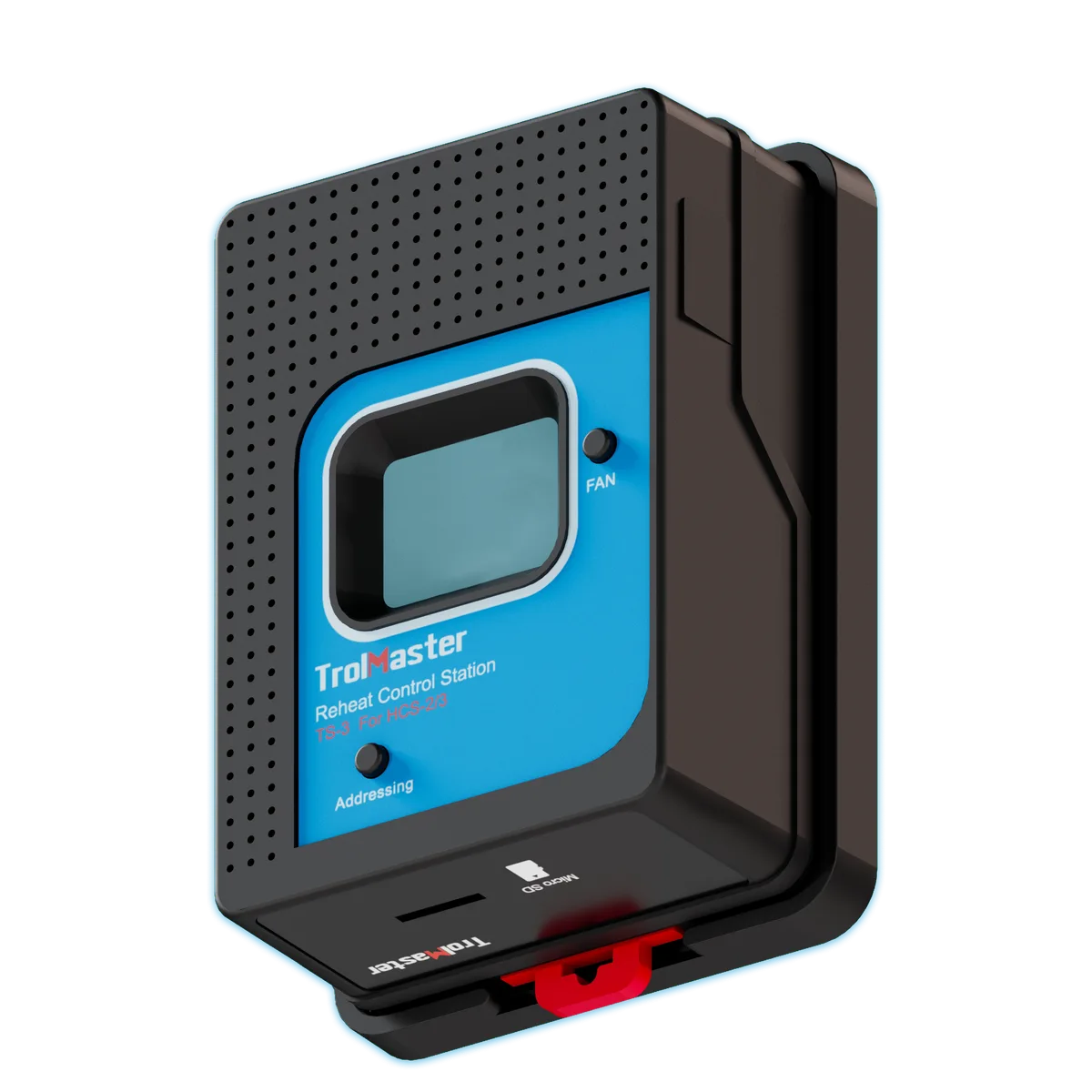

(TS-3) Reheat Control Station
The TS-3 Thermostat Station is designed to provide “reheat” control for air conditioners that are capable of a Reheat function. Reheat is simply defined as the ability for a HVAC system to activate cooling and heating at the same time. When an HVAC is operated using reheat, a significant amount of dehumidification is possible without further reducing the temperature within the controlled space. This basically allows the users to utilize the existing refrigeration circuit of their HVAC unit, to also act as a dehumidifier. The TS-3 is intended for use with the TrolMaster HCS-2 and HCS-3 controllers and will manage temperature control and supplemental dehumidification. It can be used with single stage HVAC systems / Heat pumps that are capable of operating in this configuration.
One of the key features of the TS-3 is its ability to perform dehumidification by activating both heating and cooling simultaneously. However, this function requires the HVAC unit to be capable of receiving both heat and cool signals at the same time. Standard HVAC systems may not support this without special configuration or modification.
*Mini-split AC units and VRF systems are normally NOT compatible with the TS-3 and reheat. The ability to use the TS-3 is dependent on the compatibility of the HVAC system to handle simultaneous heating and cooling operations.
Reminder: The connected HVAC / Heat pump device must allow both cooling and heating to be activated simultaneously, or it may cause damage to the equipment.
Features & Benefits
Package Contents
Specifications
The TS-3 Thermostat Station is designed to provide “reheat” control for air conditioners that are capable of a Reheat function. Reheat is simply defined as the ability for a HVAC system to activate cooling and heating at the same time. When an HVAC is operated using reheat, a significant amount of dehumidification is possible without further reducing the temperature within the controlled space. This basically allows the users to utilize the existing refrigeration circuit of their HVAC unit, to also act as a dehumidifier. The TS-3 is intended for use with the TrolMaster HCS-2 and HCS-3 controllers and will manage temperature control and supplemental dehumidification. It can be used with single stage HVAC systems / Heat pumps that are capable of operating in this configuration.
One of the key features of the TS-3 is its ability to perform dehumidification by activating both heating and cooling simultaneously. However, this function requires the HVAC unit to be capable of receiving both heat and cool signals at the same time. Standard HVAC systems may not support this without special configuration or modification.
*Mini-split AC units and VRF systems are normally NOT compatible with the TS-3 and reheat. The ability to use the TS-3 is dependent on the compatibility of the HVAC system to handle simultaneous heating and cooling operations.
Reminder: The connected HVAC / Heat pump device must allow both cooling and heating to be activated simultaneously, or it may cause damage to the equipment.
Features & Benefits
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X
- Micro-SD for Firmware Upgrade
- Address Assignment
- Plug & Play
Package Contents
- 1 x Thermostat Station (TS-3)
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specifications
- Output Voltage: 24V
- Maximum Current: 1A
- Working Environment: Temperature 32-122°F, Humidity=90%
- Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
- G.W. per pack: 0.40kgs
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Climate Control > Dehumidifiers
- Listed weight: 0.88 lbs
- Listed dimensions: 16 x 12 x 12 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCTS3
BrandTrolMaster
UPC6970207973107
Weight0.88 lbs
Dimensions16 x 12 x 12 in
Voltage24V
Sensor TypesTemperature, Humidity
Max Amps1A
Compatible WithHydro-X (HCS-1), Hydro-X Pro (HCS-2), Hydro-X Plus (HCS-3)
ModelTS-3
TypeModule/Station
Size1x16 ft
