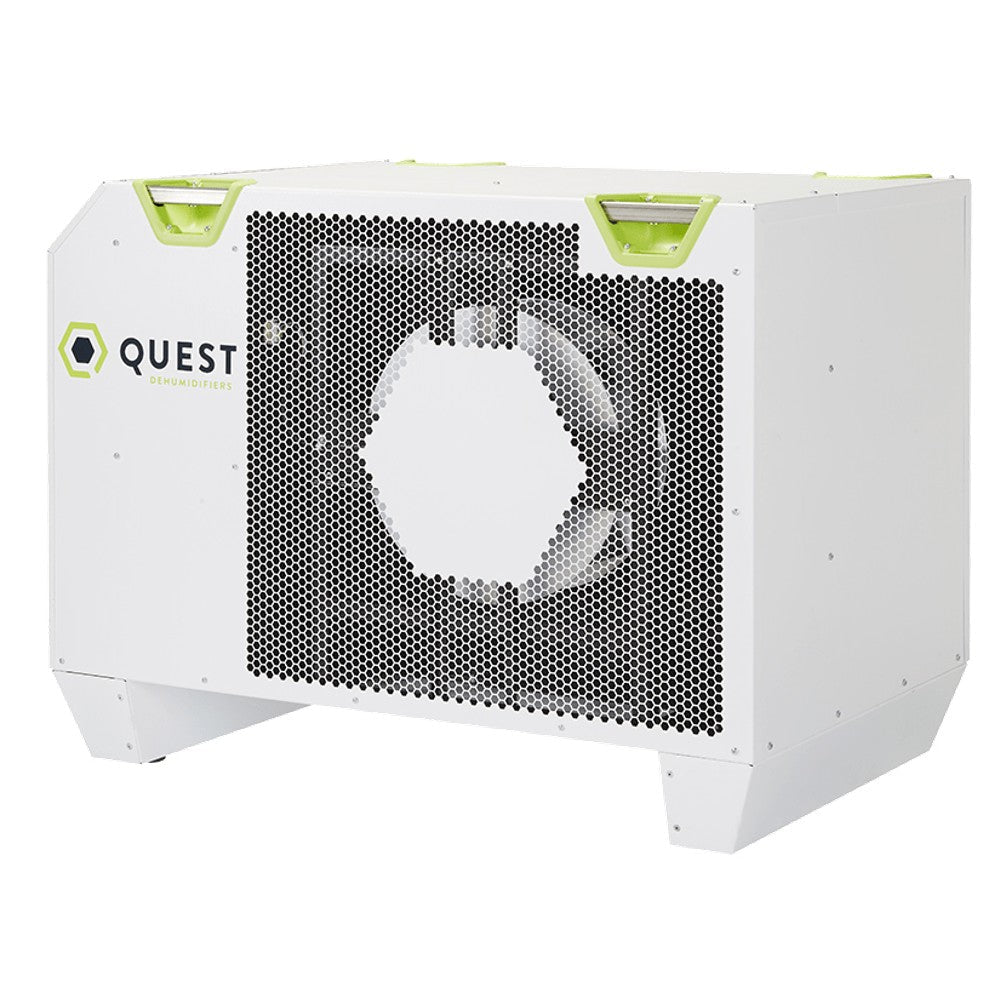

Quest 746 480V Overhead Dehumidifier A2L
Quest 746 480V Overhead Dehumidifier A2L - Image 1Quest 746 480V Overhead Dehumidifier A2L - Image 2Quest 746 480V Overhead Dehumidifier A2L - Image 3Quest 746 480V Overhead Dehumidifier A2L - Image 4Quest 746 480V Overhead Dehumidifier A2L - Image 5

Quest 746 480V Overhead Dehumidifier A2L

SKU: QUE4046320
$12,999.99
Out of Stock
Questions? Call 419-725-2450

Quick answer

Quest 746 480V Overhead Dehumidifier A2L is best evaluated by room size, plant count, watering volume, temperature, target humidity, and drain setup.

Best fitRooms or tents where humidity control must match the actual water load, not only the square footage.
Check before orderingConfirm voltage, drain setup, hanging or floor placement, controller needs, dimensions, and service clearance.
Grower tipCall Toledo Indoor Garden before buying if you are unsure about sizing. We can help avoid undersizing or overbuying.

Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.

Description

Quest 746 480V Overhead Dehumidifier A2L — Quest Climate Commercial Dehumidifier KEY PERFORMANCE SPECIFICATIONS: • Water Removal: 730 pints/day @ 80°F/60% RH • Water Removal: 480 pints/day @ 75°F/50% RH • Energy Efficiency: 8.3 pints/k Wh @ 80°F/60% RH • Energy Efficiency: 6.1 pints/k Wh @ 75°F/50% RH • Energy Factor: 3.9 L/k Wh • Airflow: 1650 CFM @ 0.0" static pressure ELECTRICAL: • Voltage: 480V – 3 Phase • Current Draw: 4.9A • Power: 3665 Watts • Connection: Hardwire Only HEAT OUTPUT: • Total BTU: 45,700 • Heat of Condensation: 33,200 BTU • Motor Load: 12,500 BTU PHYSICAL: • Dimensions: 44.8" L × 28.9" W × 27.4" H • Weight: 300 lbs ENVIRONMENTAL: • Operating Temperature: 56°F – 95°F • Refrigerant: R-454B (6 lb 8 oz) • Air Filter: MERV 13 • Filter Size: 18" × 20" × 2" INSTALLATION & DRAINAGE: • Drain: 3/4" Threaded NPT • Installation: Freestanding or overhead (3/8" threaded rod) • Technology: Patented M-CoRR™ (multi-coil refrigeration) • Blower: Variable Speed EC Motor • California Title 24 (Ducted): 7.7 pints/k Wh @ 73°F, 60% RH • Warranty: 5-Year Limited • Engineered & Assembled: Madison, Wisconsin.

Weight: 300 lbs.

Dimensions: 44.8 x 28.9 x 27.4 in.

  • Dehumidifier
  • 3665W wattage output
  • Genuine Quest product
  • Brand: Quest
  • Category: Climate Control > Dehumidifiers
  • Listed weight: 300 lbs

Specifications

SKUQUE4046320
BrandQuest
UPC810017961764
Weight300 lbs
Dimensions44.8 x 28.9 x 27.4 in
TypeDehumidifier
BTU33200 BTU
Pints/Day730 pints/day
CFM1650 CFM
Amps4.9A
Speed ControlVariable
MERV RatingMERV 13
Filter Dimensions18" x 20" x 2"
Wattage3665W
Capacity Pints Day730 Pints/Day @ 80°F/60% RH
Efficiency8.3 Pints/kWh
Amperage4.9 A
Power Watts3,665 W
Btu Total45,700 BTU
Btu Heat Of Condensation33,200 BTU
Btu Motor Load12,500 BTU
Cfm1,650 CFM
Operating Temp56°F – 95°F
Voltage480V – 3 Phase
Merv RatingMERV 13
Air Filter Dimensions18" x 20" x 2"
RefrigerantR454B (6 lb 8 oz)
Drain Port3/4" Threaded NPT
Power CordHardwire Only
Warranty5 Year Limited
Part Number4046320
Dehumidifier TypeRefrigerant
Specs Sourcequestclimate.com
Capacity3.9 L
ShippingFreight required
