TrolMaster
TrolMaster 25" Standard Controller Cabinet for Hydro-X Pro (SCC-1)
SKU: TRCSCC1
$799.99
$1,048.95
SALE Available to Order (10 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm same-day pickup.
Quick answer
TrolMaster 25" Standard Controller Cabinet for Hydro-X Pro (SCC-1) should be chosen around the equipment it must run, the probes or readings needed, and the level of automation required.
Best fitGrowers matching controls, meters, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, voltage, replacement parts, and calibration needs.
Grower tipIf you are matching this to existing equipment, call with the model numbers so compatibility can be checked first.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description
TrolMaster (SCC-1) 25” Standard Controller Cabinet for Hydro-X Pro / Aqua-X Pro

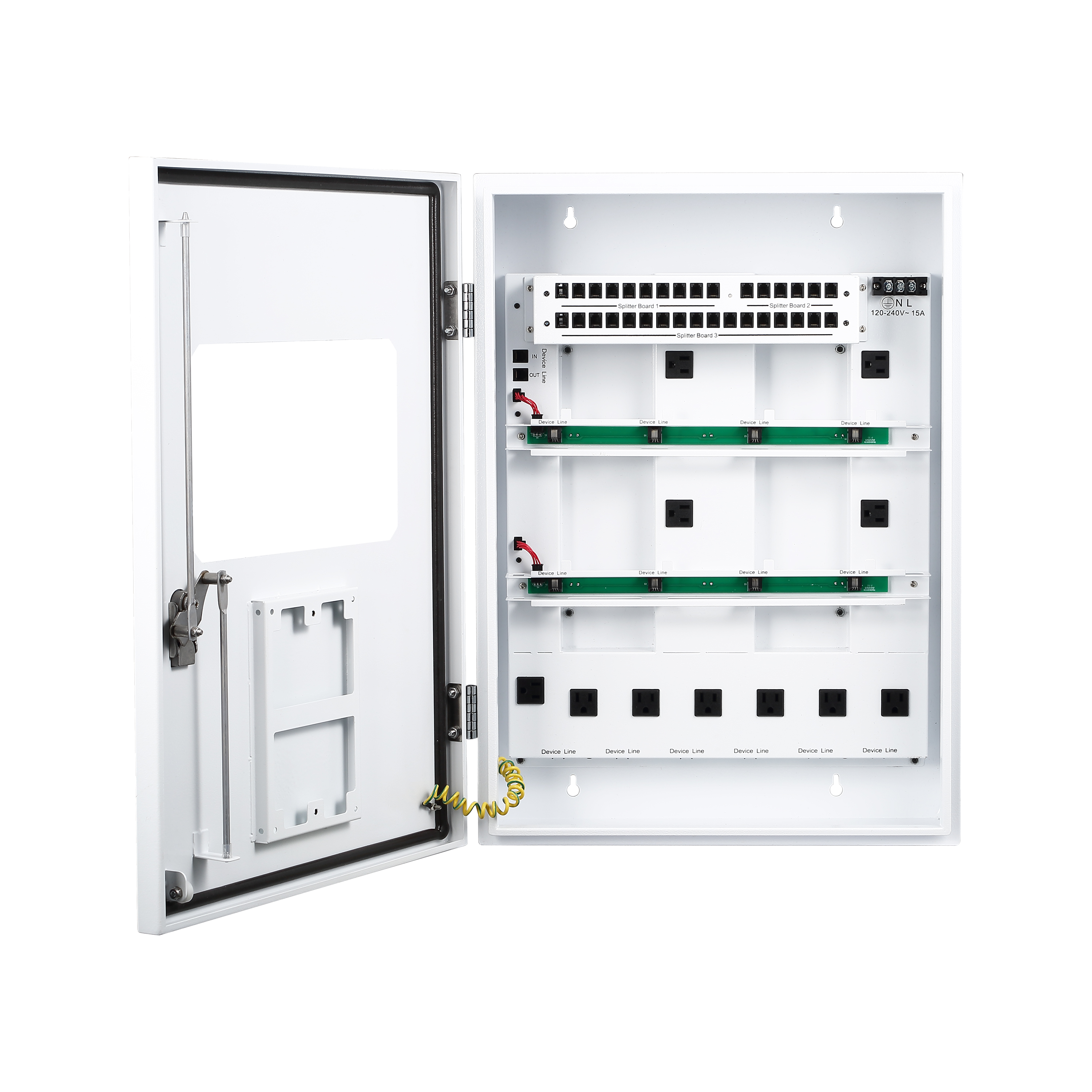

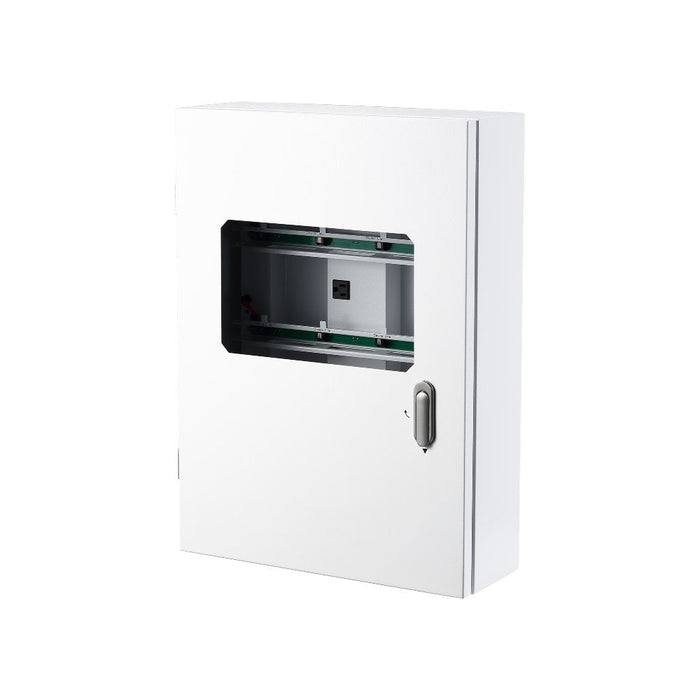

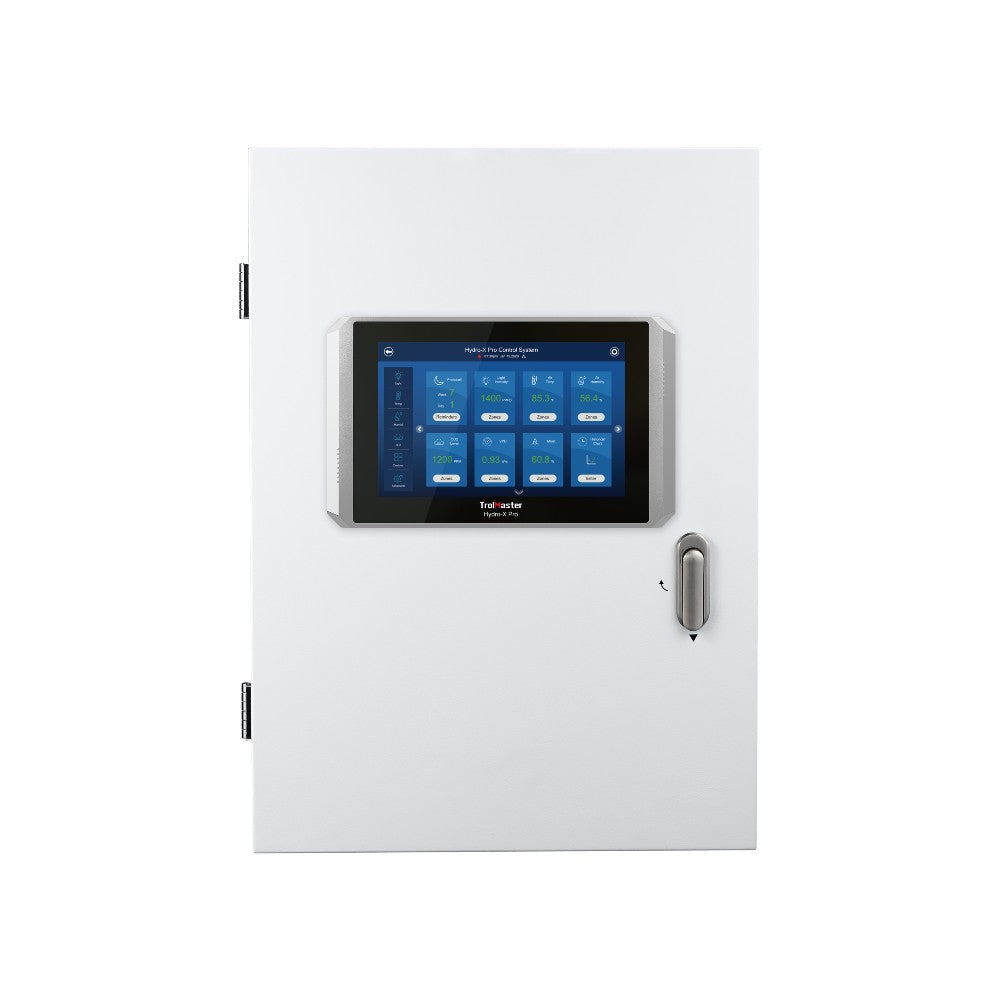

The SCC-1 25"Controller Cabinet is modular electrical enclosures and wire management systems for your TrolMaster Control system.
The enclosures are designed to allow for your TrolMaster controllers to be installed in a professional way. All of your device stations can be mounted inside the electrical cabinet to keep the device stations clean and dry. You’ll now be able to safely mount power supplies and modules, and organize your RJ12 cables with ease.
Features & Benefits:
Package Content:
Cabinet Capacity:
Specification:
The SCC-1 25"Controller Cabinet is modular electrical enclosures and wire management systems for your TrolMaster Control system.
The enclosures are designed to allow for your TrolMaster controllers to be installed in a professional way. All of your device stations can be mounted inside the electrical cabinet to keep the device stations clean and dry. You’ll now be able to safely mount power supplies and modules, and organize your RJ12 cables with ease.
Features & Benefits:
- Guaranteed Industrial Rated & Waterproof
- ALL-IN-ONE Controller & Device Module Housing
- Design Your Own Cabinet by Using Bi-directional RJ12 Cables
- Detachable Design
- Superior Safety System
Package Content:
- Controller Cabinet x1
- Installation Manual x1
- Long RJ-12 Cables x4
- Short RJ-12 Cables x16
- Power Cables (for OA6-24/OA6-110) x4
- OA6-24/OA6-110 Screw Set x 10
Cabinet Capacity:
- Splitter Board #1: 10 ports (top)
- Splitter Board #2: 6 ports (top)
- Splitter Board #3: 17 ports (top)
- Splitter Board #4: 2 x 4 ports (middle splitter bars)
- Splitter Board #5: 6 ports (bottom)
- Power Outlet: 4 + 1 + 6
Specification:
- Dimensions:25" (L) x 18" (W) x 6.26" (H)
- Enclosure Rating:IP56 (equivalent to NEMA 4X rating)
- Temperature Resistance:32°-104°F
- Input Voltage:120V
- Maximum Amperage:15A
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Climate Control > Controllers & Monitors
- Listed weight: 36.8 lbs
- Listed dimensions: 18 x 10 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCSCC1
BrandTrolMaster
UPC6970207972025
Weight36.8 lbs
Dimensions18 x 10 x 6 in
Compatible WithHydro-X Pro (HCS-2)
ModelSCC-1
TypeController
CategoryControllers & Monitors
