TrolMaster 6 Outputs 24V Control Board (OA6-24)
SKU: TRCOA624
$100.28
Available to Order (174 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm same-day pickup.
Quick answer
TrolMaster 6 Outputs 24V Control Board (OA6-24) should be matched to canopy footprint, mounting height, dimming needs, crop stage, heat load, and controller compatibility.
Best fitGrow spaces where the fixture footprint, power draw, and hanging height fit the actual canopy.
Check before orderingConfirm voltage, plug type, controller compatibility, dimensions, hanging hardware, and room heat management.
Grower tipStart with conservative intensity, then raise output as plants respond. Airflow and distance matter as much as wattage.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description
TrolMaster (OA6-24) 24V Control Board for Aqua-X System

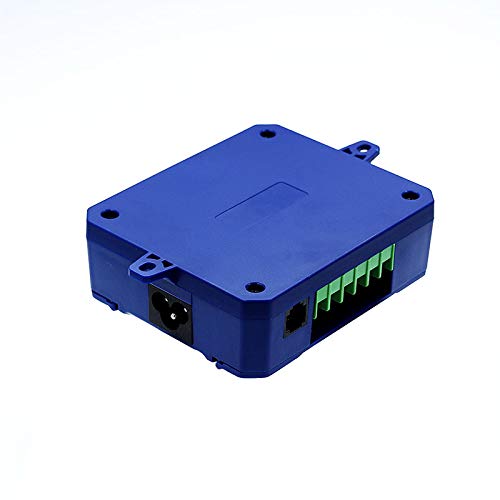

The OA6-24 control board is designed to control multiple 24vac solenoid valves.
It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.
Features & Benefits:
Specification:
The OA6-24 control board is designed to control multiple 24vac solenoid valves.
It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.
Features & Benefits:
- LED Power Indicator
- Addressing Button
- 6 Individually-Controlled 24V Outputs
- Individual LED Indicator for Each Output
- Double RJ12 Cable Sockets for Daisy Chain Connectivity

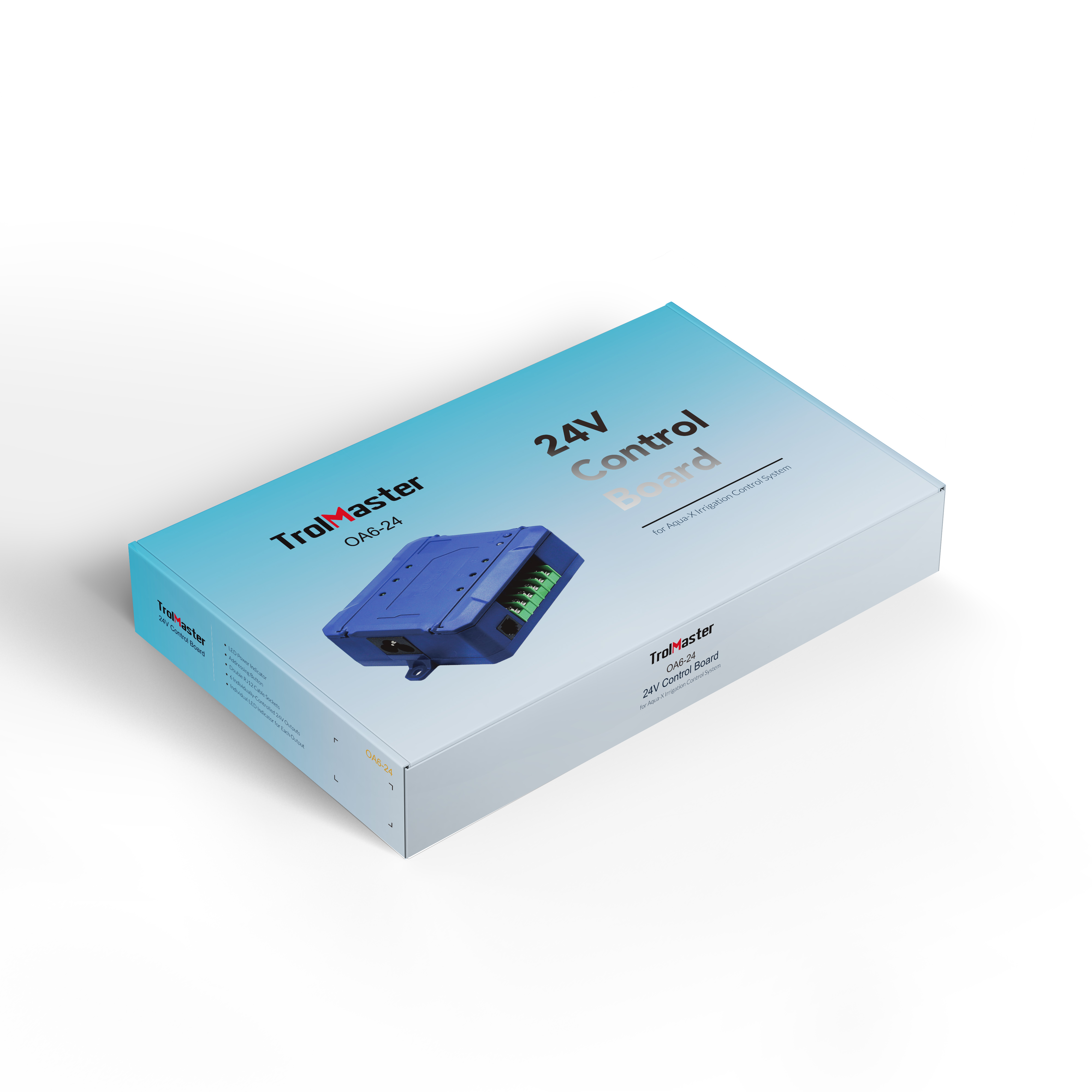

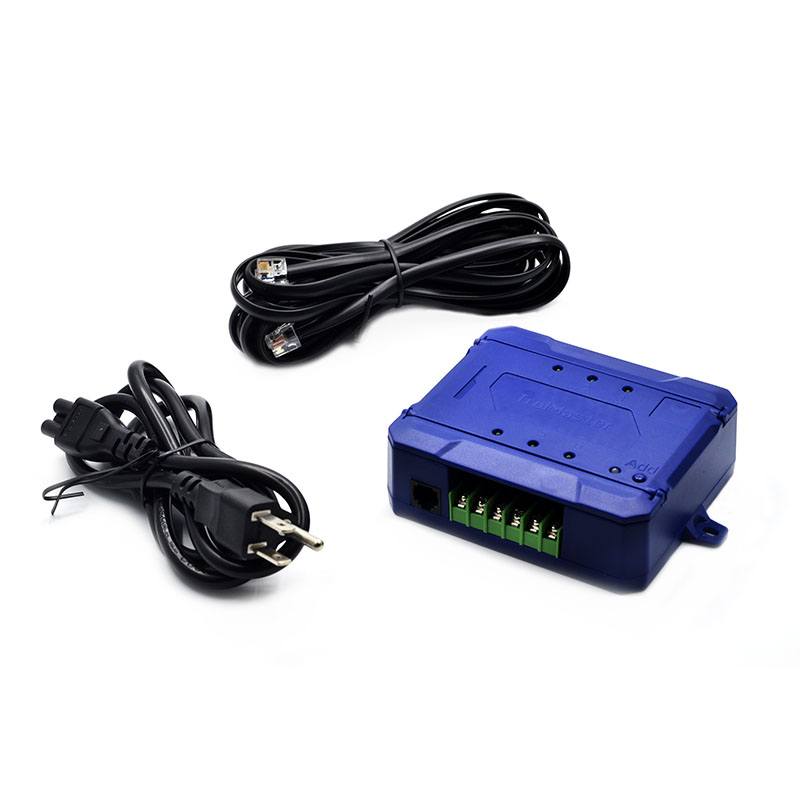

- 1 x 24V Control Board
- 1 x 16ft RJ12 Cable
Specification:
- Input Voltage :110-240 VAC
- Max Input Current :0.2A
- Max Output Voltage/Current :24VAC/0.2A per output
- Working Temperature :32°-122°F
- Working Humidity :≤90%
- Packaging Dimensions :275mm(L) x 164mm(W) x 40mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Meters & Monitoring > Timers
- Listed weight: 1.34 lbs
- Listed dimensions: 24 x 24 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCOA624
BrandTrolMaster
UPC6970207970564
Weight1.34 lbs
Dimensions24 x 24 x 6 in
Voltage110-240VAC
Sensor TypesTemperature, Humidity
Max Solenoids6
Max Amps0.2A
TypeModule
Size1x16 ft
