TrolMaster Aqua-X Pro Irrigation Control System (NFS-2)
SKU: TRCNFS2
$2,149.99
$2,623.95
SALE Available to Order (9 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm same-day pickup.
Quick answer
TrolMaster Aqua-X Pro Irrigation Control System (NFS-2) should be chosen around the equipment it must run, the probes or readings needed, and the level of automation required.
Best fitGrowers matching controls, meters, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, voltage, replacement parts, and calibration needs.
Grower tipIf you are matching this to existing equipment, call with the model numbers so compatibility can be checked first.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description
TrolMaster (NFS-2) Aqua-X Pro Controller
The NFS-2 controller from TrolMaster is one of the most advanced irrigation controllers available today. The NFS-2 is a multi-functional controller which can control multiple irrigation solenoids and pumps. The NFS-2 can also monitor multiple water sensors that can measure pH, EC / PPM, temperature and water content sensor. There is also a new optional DFM-1 flow-meter that serves multiple functions. Each of the solenoids and pumps can be "linked" to work together so that multiple grow areas can be controlled by a single NFS-2. When combined with the optional AMP-3, WCS-1 and WCS-2 sensors and the new DFM-1 flow-meter, the NFS-2 allows the user to monitor up to 50 sensors and receive mobile notifications if a problem is detected by the system. The NFS-2 was created to allow users to customize their irrigation cycle and be able to control the irrigation events by using either the DFM-1 digital flow-meter, WCS-1 or WCS-2 moisture content sensors or by simple timers. Each device being controlled by the NFS-2 can conceivably have an unlimited number of irrigation "events" each 24 hour day.
Features & Benefits:
Package Content:
Specification:
The NFS-2 controller from TrolMaster is one of the most advanced irrigation controllers available today. The NFS-2 is a multi-functional controller which can control multiple irrigation solenoids and pumps. The NFS-2 can also monitor multiple water sensors that can measure pH, EC / PPM, temperature and water content sensor. There is also a new optional DFM-1 flow-meter that serves multiple functions. Each of the solenoids and pumps can be "linked" to work together so that multiple grow areas can be controlled by a single NFS-2. When combined with the optional AMP-3, WCS-1 and WCS-2 sensors and the new DFM-1 flow-meter, the NFS-2 allows the user to monitor up to 50 sensors and receive mobile notifications if a problem is detected by the system. The NFS-2 was created to allow users to customize their irrigation cycle and be able to control the irrigation events by using either the DFM-1 digital flow-meter, WCS-1 or WCS-2 moisture content sensors or by simple timers. Each device being controlled by the NFS-2 can conceivably have an unlimited number of irrigation "events" each 24 hour day.
Features & Benefits:

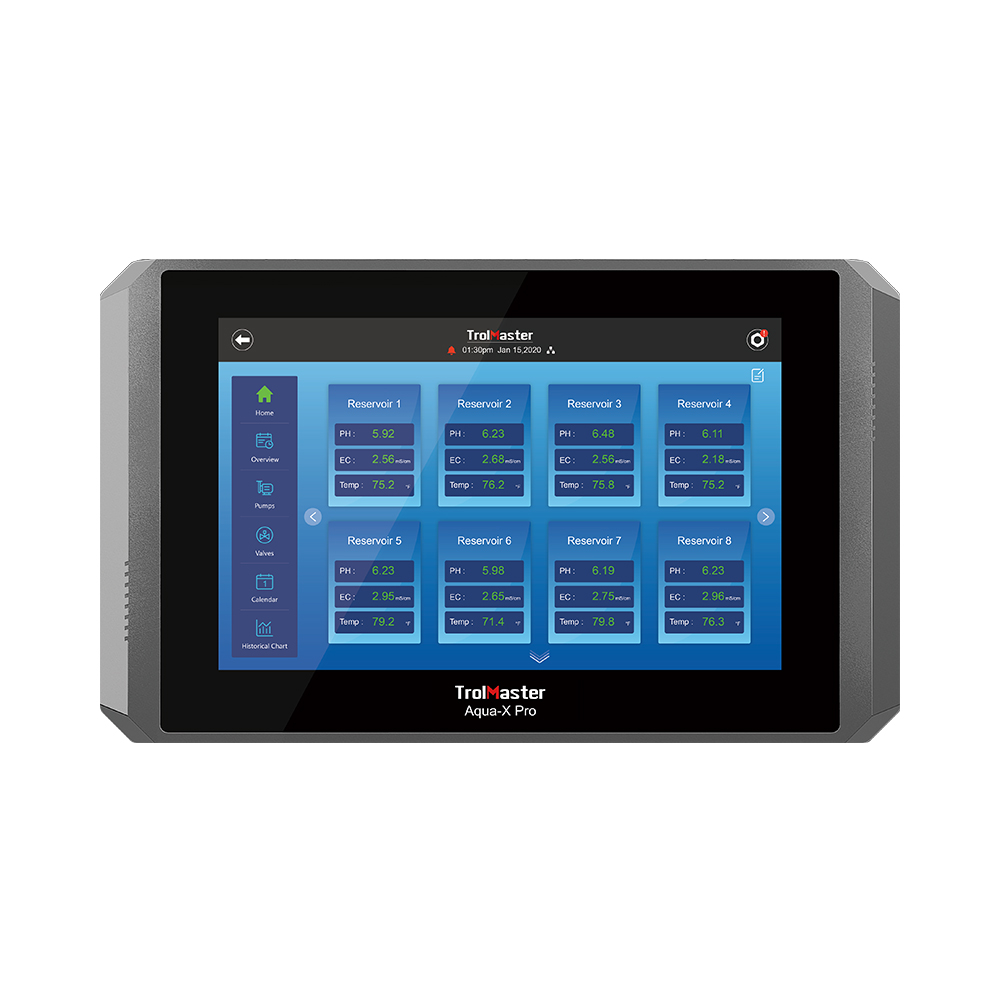

- 10” touch screen
- Phone monitoring (TM+) & web-based controlling
- Increased Product Capacity of up to 300 pumps and 300 solenoids
- Multiple reservoir monitoring on pH, EC, and Temp (with AMP-3)
- Medium EC, Temp and Moisture monitoring (with WCS-2)
- Water consumption Volume monitoring (with DFM-1)
- Feed on Demand
- Feed by volume
- Auto-fill in the reservoir
- Calendar control for multiple days preset schedules
- Flexible Master pumps connections
Package Content:
- 1x Aqua-X Pro
- 1x AMP-3
- 2x 12ft. RJ12 Cables
Specification:
- Input Voltag: 100-240V
- Certifications: ETL/FCC
- Degree of Ingress Protection: IP20
- Max Distance to Device to be connected: 1000 meter
- Nutrient Sensors (AMP-3, DFM-1, WD-1): Max 50 pc
- Medium Sensors (WCS-2, WCS-1): Max 50 pc
- PUMPS (OA6-24, OA6-110, DSP-1, DSD-1,DSE-1, OM-8): Max 50 pc
- VALVES (OA6-24, OA6-110, DSP-1, DSD-1,DSE-1, OM-8): Max 50 pc
- Working Temperature: 32-122°F
- Working Humidity: ≤90%
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Hydroponics & Irrigation > Biological Control
- Listed weight: 6.86 lbs
- Listed dimensions: 24 x 24 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCNFS2
BrandTrolMaster
UPC6970207971554
Weight6.86 lbs
Dimensions24 x 24 x 6 in
Voltage100-240V
Max Sensors50
Sensor TypesTemperature, Humidity, pH, EC/PPM, Water, Flow Meter
Displaytouch screen
ConnectivityApp Control
Ip RatingIP-20
CertificationsETL, FCC
Max Solenoids300
Max Pumps300
ModelNFS-2
TypeController
Pack Size50
Size2x12 ft
